Showing all 9 results

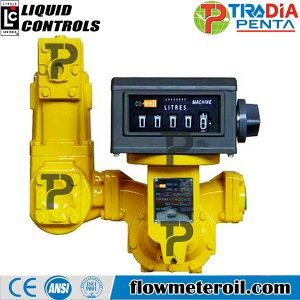

Liquid Control Flow Meter Oil M10

SPECIFICATION LIQUID CONTROL FLOW METER OIL LC-M10-C
• Connection size 2″, Capacity : 550 L/Min ( 150 GPM )
• Accuracy : ± 0.2%
• Repeatability :≤ 0.05 %
• Standar Measurement : Unit Liter / US Gallon / imperial Gallon
• Max Working Temperature :(-40° C to 71°C)
• Meter Body : Aluminium , Cast iron , Steel
• Connections : ANSI Flanged , NPT , BSPT , Slip Woled Available
• Max.Pressure : 10.5Bar/150 PSI
• Type : Direct Reading

Sebagai perusahaan yang sudah lama bergerak dibidang penjualan alat alat pendukung keperluan industri seperti flow meter, water meter, strainer, pompa hydraulic,dll. Kami berkomitmen menyediakan Produk-Produk Liquid Control Flow Meter dengan kualitas terbaik, harga bersaing dan telengkap untuk membantu memenuhi kebutuhan perusahaan Anda

Download Katalog Liquid Control Flow Meter Oil

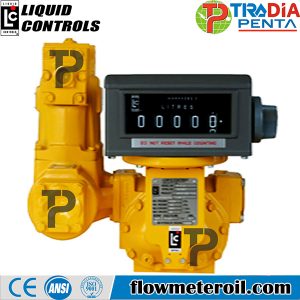

Liquid Control Flow Meter Oil M15

SPECIFICATION LIQUID CONTROL FLOW METER OIL LC-M15-C
• Connection size 3″, Capacity : 760 L/Min ( 200 GPM )
• Accuracy : ± 0.2%
• Repeatability :≤ 0.05 %
• Standar Measurement : Unit Liter / US Gallon / imperial Gallon
• Max Working Temperature :(-40° C to 71°C)
• Meter Body : Aluminium , Cast iron , Steel
• Connections : ANSI Flanged , NPT , BSPT , Slip Woled Available
• Max.Pressure : 10.5Bar/150 PSI
• Type : Direct Reading

Sebagai perusahaan yang sudah lama bergerak dibidang penjualan alat alat pendukung keperluan industri seperti flow meter, water meter, strainer, pompa hydraulic,dll. Kami berkomitmen menyediakan Produk-Produk Liquid Control Flow Meter dengan kualitas terbaik, harga bersaing dan telengkap untuk membantu memenuhi kebutuhan perusahaan Anda

Download Katalog Liquid Control Flow Meter Oil

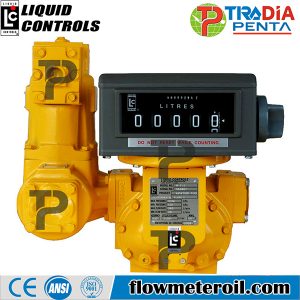

Liquid Control Flow Meter Oil M25

SPECIFICATION LIQUID CONTROL FLOW METER OIL LC-M25-C
• Connection size 3″, Capacity : 1135 L/Min ( 300 GPM )
• Accuracy : ± 0.2%
• Repeatability :≤ 0.05 %
• Standar Measurement : Unit Liter / US Gallon / imperial Gallon
• Max Working Temperature :(-40° C to 71°C)
• Meter Body : Aluminium , Cast iron , Steel
• Connections : ANSI Flanged , NPT , BSPT , Slip Woled Available
• Max.Pressure : 10.5Bar/150 PSI
• Type : Direct Reading

Sebagai perusahaan yang sudah lama bergerak dibidang penjualan alat alat pendukung keperluan industri seperti flow meter, water meter, strainer, pompa hydraulic,dll. Kami berkomitmen menyediakan Produk-Produk Liquid Control Flow Meter dengan kualitas terbaik, harga bersaing dan telengkap untuk membantu memenuhi kebutuhan perusahaan Anda

Download Katalog Liquid Control Flow Meter Oil

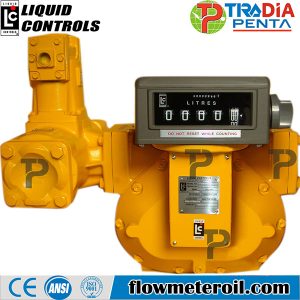

Liquid Control Flow Meter Oil M30

SPECIFICATION LIQUID CONTROL FLOW METER OIL LC-M30-C
• Connection size 3″, Compatibility size 4″ Capacity : 1325 L/Min ( 350 GPM )
• Accuracy : ± 0.2%
• Repeatability :≤ 0.05 %
• Standar Measurement : Unit Liter / US Gallon / imperial Gallon
• Max Working Temperature :(-40° C to 71°C)
• Meter Body : Aluminium , Cast iron , Steel
• Connections : ANSI Flanged , NPT , BSPT , Slip Woled Available
• Max.Pressure : 10.5Bar/150 PSI
• Type : Direct Reading

Liquid Control Flow Meter Oil M40

SPECIFICATION LIQUID CONTROL FLOW METER OIL LC-M40-C
• Connection size 4″, Capacity : 1700 L/Min ( 450 GPM )
• Accuracy : ± 0.2%
• Repeatability :≤ 0.05 %
• Standar Measurement : Unit Liter / US Gallon / imperial Gallon
• Max Working Temperature :(-40° C to 71°C)
• Meter Body : Aluminium , Cast iron , Steel
• Connections : ANSI Flanged , NPT , BSPT , Slip Woled Available
• Max.Pressure : 10.5Bar/150 PSI
• Type : Direct Reading

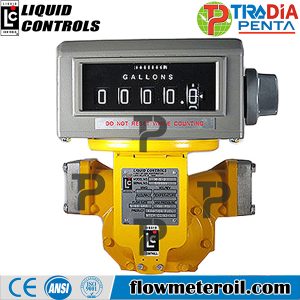

Liquid Control Flow Meter Oil M5

SPECIFICATION LIQUID CONTROL FLOW METER OIL LC-M5-C
• Connection size 2″, Capacity : 227 L/Min ( 60 GPM )
• Accuracy : ± 0.2%
• Repeatability :≤ 0.05 %
• Standar Measurement : Unit Liter / US Gallon / imperial Gallon
• Max Working Temperature :(-40° C to 71°C)
• Meter Body : Aluminium , Cast iron , Steel
• Connections : ANSI Flanged , NPT , BSPT , Slip Woled Available
• Max.Pressure : 10.5Bar/150 PSI
• Type : Direct Reading

Sebagai perusahaan yang sudah lama bergerak dibidang penjualan alat alat pendukung keperluan industri seperti flow meter, water meter, strainer, pompa hydraulic,dll. Kami berkomitmen menyediakan Produk-Produk Liquid Control Flow Meter dengan kualitas terbaik, harga bersaing dan telengkap untuk membantu memenuhi kebutuhan perusahaan Anda

Download Katalog Liquid Control Flow Meter Oil

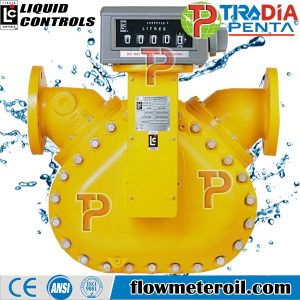

Liquid Control Flow Meter Oil M60

SPECIFICATION LIQUID CONTROL FLOW METER OIL LC-M60-C
• Capacity: 600 GPM (2,271 L/min.)
• Case made of aluminum with meter element components of various materials as required for Classes 1, 2, 3, 14 and 15 construction.
• 4” square flanged spool and 4” companion flange connection standard…NPT or BSPT threads. Choice of 4” and 6” ANSI FF flanged connections and 4” and 6” Victaulic spools. Also aluminum or steel welding flanges. 4” or 6” ANSI RF, aluminum, forged flanged connections optional.

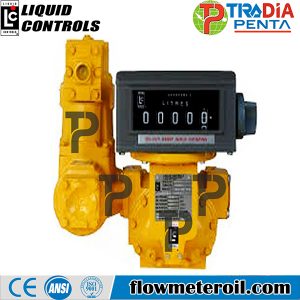

Liquid Control Flow Meter Oil M7

SPECIFICATION LIQUID CONTROL FLOW METER OIL LC-M7-C
• Connection size 2″, Capacity : 380 L/Min ( 150 GPM )
• Accuracy : ± 0.2%
• Repeatability :≤ 0.05 %
• Standar Measurement : Unit Liter / US Gallon / imperial Gallon
• Max Working Temperature :(-40° C to 71°C)
• Meter Body : Aluminium , Cast iron , Steel
• Connections : ANSI Flanged , NPT , BSPT , Slip Woled Available
• Max.Pressure : 10.5Bar/150 PSI
• Type : Direct Reading

Sebagai perusahaan yang sudah lama bergerak dibidang penjualan alat alat pendukung keperluan industri seperti flow meter, water meter, strainer, pompa hydraulic,dll. Kami berkomitmen menyediakan Produk-Produk Liquid Control Flow Meter dengan kualitas terbaik, harga bersaing dan telengkap untuk membantu memenuhi kebutuhan perusahaan Anda

Download Katalog Liquid Control Flow Meter Oil

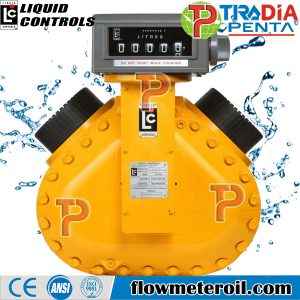

Liquid Control Flow Meter Oil M80

SPECIFICATION LIQUID CONTROL FLOW METER OIL LC-M80-C
• Capacity: 800 GPM (3,000 L/min.)
• OVERLOAD OPERATION: Capable of momentary overload operation at 125% of maximum rated capacity in either direction without damage to mechanism (applies to Class2 meters only, on Jet Fuel only).125% overload operation (1,000 GPM) requires 6” ANSI or 6” Victaulic connections only
• Case made of aluminum with meter element components of various materials as required for Class 2 construction for refined petroleum products including aviation fuels
• Standard with 6” Victaulic (Right Angle Inlet to Outlet orientation). Optional choice of 4” and 6” ANSI FF flanged connections and 4” and 6” Victaulic spools. Also 4” square flanged spools and 4” companion flanges with NPT or BSPT threads or aluminum or steel welding flanges. 4” or 6” ANSI RF, aluminum, forged flanged connections optional.

Sebagai perusahaan yang sudah lama bergerak dibidang penjualan alat alat pendukung keperluan industri seperti flow meter, water meter, strainer, pompa hydraulic,dll. Kami berkomitmen menyediakan Produk-Produk Liquid Control Flow Meter dengan kualitas terbaik, harga bersaing dan telengkap untuk membantu memenuhi kebutuhan perusahaan Anda

Download Katalog Liquid Control Flow Meter Oil
