Showing all 7 results

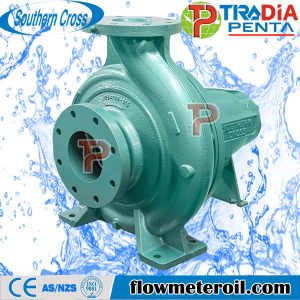

Southern Cross Aurora Series

Features

  • Bronze fitted pump construction
  • Dynamically balance impellers
  • Bronze shaft sleeves and case wearing rings
  • Twin volute on 10” and larger pumps
  • Re-grease able ball bearings
  • Internal bypass between casing and stuffing box
  • Carbon steel shaft
  • Lifting Lugs
  • Cast integral bearing arms
  • Water slingers and grease seals
  • Coupling guard

Southern Cross Centrifugal Pump

Optional Materials

  • Zinc-free bronze impeller and Molybond coating
  • Cast Iron AS1830 / T260
  • Stainless Steel AS2074 / H6B
  • Zinc Free Bronze AS1565 / C90250
  • SG Iron AS1831 / 400-12
  • “Durimet 20” AS2074 / H9A

Optional Extras

  • Zinc-free bronze wear rings for impeller, volute and backplate
  • optional single mechanical seals
  • optional motor specifications and classes works certified and witnessed tests for guaranteed performance
  • impeller turn-downs
  • pressed or welded steel baseplates

Maximum Operating Temperature

  • Maximum pumped liquid temperature for Southern Cross Starline pumps is 100°C using standard seals. Liquids up to 140°C can be handled using special seals. Consult Southern Cross Customer Service Unit for further information

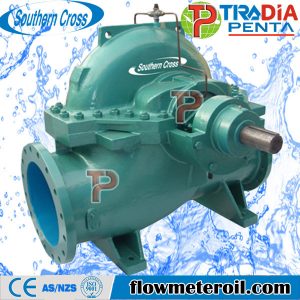

Southern Cross Centurion

Features

  • Compact design
  • Easy installation
  • Precision cast for superior hydraulic and mechanical performance and improved efficiency
  • Heavy duty, low noise bearings
  • 80mm to 800mm discharge
  • Flow rates up to 3200 litres per second
  • Heads up to 200 metres
  • Material options available to meet the requirements of high temperature or corrosive liquids
  • Mechanical Seal or stuffed gland sealing
  • Temperatures up to 105°C
  • Up to 24 bar working pressure (up to 37.5 bar testing pressure)
  • Can handle solids content of up to 80mg/litre

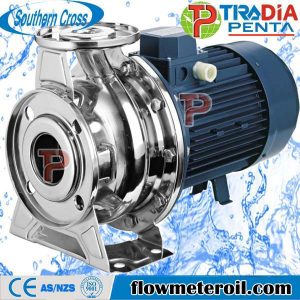

SOUTHERN CROSS HBN

OPERATING LIMITS

  • Capacity Maximum 14m3 /hour
  • Head Maximum 55 metres
  • Liquid Temp. 0˚C to +90˚C
  • Max. Ambient Temp. +40˚C
  • Pumped Liquid Clean Water Light Oils Soft Water Demineralised Water

Model Pump HBN Series

  • HBN 2-20, HBN 2-30, HBN 2-40, HBN 2-50, HBN 2-60, HBN 4-20, HBN 4-30, HBN 4-40, HBN 4-50, HBN 4-60, HBN 8-10, HBN 8-15, HBN 8-20, HBN 8-25, HBN 8-30, HBN 12-20, HBN 12-25, HBN 12-30

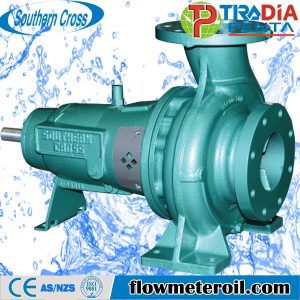

Southern Cross ISO

Optional Extras

  • Heavy duty bearing options include constant level oilers and oil coolers
  • To meet AS2941 Fire Protection Pump Code deep groove grease lubricated bearings, either sealed for life or regreasable bearings are available
  • Labyrinth shaft seals
  • Replaceable stainless steel or zinc free bronze wear rings where abrasive liquids are pumped
  • Reusable ‘O’ ring body seals in Teflon or EPDM
  • Optional drilling flanges
  • Optional packed glands running on replaceable stainless steel shaft sleeves are available with pumped water by-pass lubrication, or external clean water flushing. Split glands are fitted for ease of service.
  • Mechanical seals – single or double cartridge seals running on stainless steel shaft sleeves in balanced or unbalanced configuration of various types to suit particular applications.
  • External clean water flushing and cooling can be supplied for high temperature, abrasive or toxic applications.

Optional Wet-end Materials

  • Cast Iron AS1830 / T260
  • Stainless Steel AS2074 / H6B
  • Zinc Free Bronze AS1565 / C90250
  • SG Iron AS1831 / 400-12
  • “Durimet 20” AS2074 / H9A

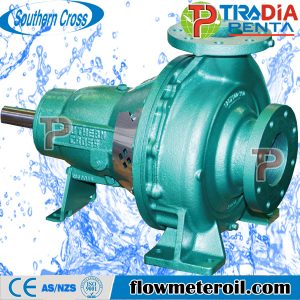

Southern Cross ISO Sovereign

Optional Materials

  • Zinc-free bronze impeller type 316 stainless steel shaft and Molybond coating
    Optional Extras
  • Zinc-free bronze wear rings for impeller, volute and backplate
  • Optional single mechanical seals
  • Soft packed gland seals
  • Works certified and witnessed tests for guaranteed performance
  • Impeller turn-downs
  • Flexible and spacer couplings
  • Pulleys
  • Pressed and or welded steel baseplates

Maximum Operating Temperature

  • Maximum pumped liquid temperature for Southern Cross “ISO Sovereign” Pumps is 80°C using standard seals
  • Liquids up to 180°C can be handled using special seals

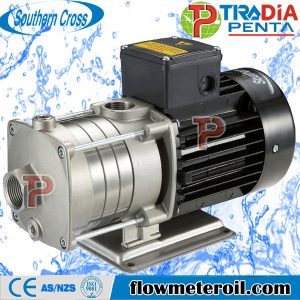

Southern Cross Pump CBI

OPTIONAL ACCESSORIES

  • Capacity Maximum 8m3 /hour
  • Head Maximum 55 metres
  • Liquid Temp. 0˚C to +90˚C
  • Ambient Temp. +40˚C
  • Pumped Liquid Clean Water

Model Pump CBI Series

  • CBI 2-20, CBI 2-30 CBI 2-40 CBI 2-50 CBI 2-60
    CBI 4-20 CBI 4-30 CBI 4-40 CBI 4-50 CBI 4-60
